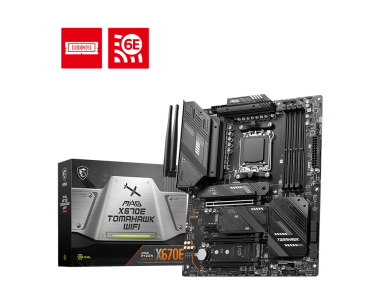

The MSI MAG X670E TOMAHAWK WIFI is a high-end ATX motherboard built for AMD Ryzen 7000-series CPUs. Featuring full PCIe 5.0 support, blazing-fast DDR5 memory, and premium connectivity, it's an elite platform designed for future-ready performance and stability.
Key Features
AMD X670 Chipset with AM5 Socket Full support for Ryzen 7000 series desktop processors—ideal for builders seeking top-tier specs.
DDR5 Memory Support 4× DIMM slots, up to 256 GB, with OC speeds reaching up to 7800 MT/s (1DPC 1R) and strong EXPO/XMP support.
PCIe & Expansion Slots
GPU Slot: PCIe 5.0 x16 (from CPU)
Additional: PCIe 4.0 x4 and PCIe 3.0 x1 from CPU/chipset
Storage Options 4× M.2 slots: 1× PCIe 5.0 x4 (CPU), and 3× PCIe 4.0 x4 (chipset); plus 4× SATA 6Gb/s ports.
Networking & Wireless Includes Realtek 2.5 Gb LAN, Wi‑Fi 6E, and Bluetooth 5.3 for fast and flexible connectivity.
USB & Display Outputs
Rear: USB 3.2 Gen2×2 Type‑C (20 Gb/s), Gen2/Gen1 Type‑A, plus HDMI 2.1 & DisplayPort 1.4
Front headers include USB 3.2 Gen2 Type‑C and more.
Audio Realtek ALC1200 7.1-channel HD audio with Audio Boost & isolated circuitry.
Power Delivery & Cooling 14+2+1 VRM design, dual 8-pin CPU power, Core Boost, Memory Boost, enhanced heatsinks, and M.2 Shield Frozr cooling armor.
Build Features Pre-installed I/O shield, EZ Debug LEDs, Flash BIOS and Clear CMOS buttons, and robust 8-layer copper-rich PCB.
Aesthetics & RGB Mystic Light expansion headers, ARGB Gen2 support, and Ambient Link for synchronized RGB setups.
Form Factor ATX (304.8 × 243.84 mm), compatible with standard mid-to-large sized cases.
