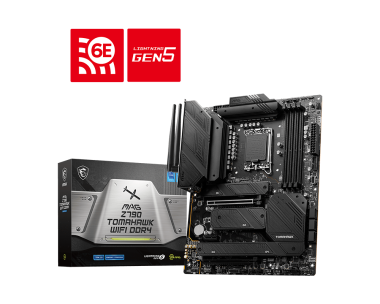

MSI MAG Z790 TOMAHAWK WIFI DDR4

The MSI MAG Z790 TOMAHAWK WIFI DDR4 is a high-performance ATX motherboard built for 12th and 13th Gen Intel Core processors using the LGA 1700 socket. Featuring support for DDR4 memory, PCIe 5.0, high-speed storage, and Wi-Fi 6E, this board delivers premium performance for gamers and creators who want cutting-edge specs without switching to DDR5.

Key Features

• Intel Z790 Chipset with LGA 1700 Socket
  Supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

• DDR4 Memory Support
  4× DIMM slots, up to 128GB DDR4, speeds up to 5333+ MHz (OC) via XMP 3.0.

• PCIe Expansion
  1× PCIe 5.0 x16
  1× PCIe 4.0 x4
  1× PCIe 3.0 x1

• M.2 and SATA Storage
  4× M.2 slots (PCIe 4.0 x4 / SATA)
  7× SATA III ports (RAID 0/1/5/10 support)

• High-Speed Networking
  Intel 2.5G LAN + Intel Wi-Fi 6E + Bluetooth 5.3

• USB Ports
  Rear USB 3.2 Gen 2x2 Type-C (20Gbps)
  Multiple USB 3.2 Gen 2/Gen 1 Type-A and USB 2.0

• Integrated Display Outputs
  1× HDMI 2.1
  1× DisplayPort 1.4

• Power Design
  16+1+1 Duet Rail VRM with Core Boost and dual 8-pin CPU power connectors

• Premium Cooling
  Extended heatsinks, 7W/mK thermal pads, M.2 Shield Frozr for SSDs

• Audio
  Realtek ALC4080 7.1-channel HD audio with Audio Boost

• Build Features
  Pre-installed I/O shield, EZ Debug LEDs, Flash BIOS Button, Clear CMOS Button

• Form Factor
  ATX – 305mm × 244mm
