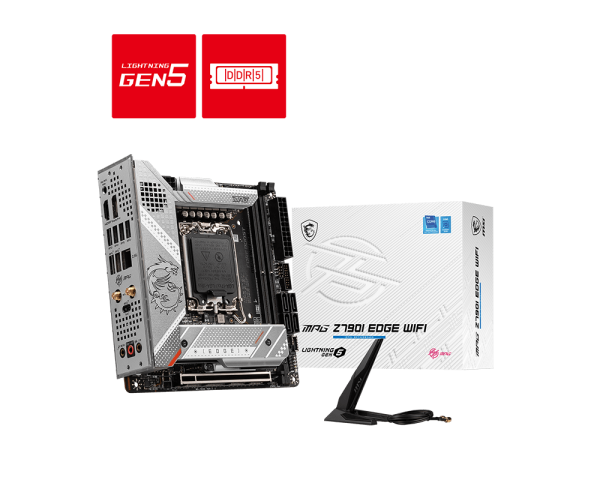

MSI MPG Z790I EDGE WIFI

The MPG Z790I EDGE WIFI is a compact, premium mini‑ITX motherboard built on the Intel Z790 chipset for LGA 1700. Designed for small-form-factor gaming or creator builds, it balances powerful performance, refined aesthetics, and rich connectivity in a stylish silver-white design.

Key Features

• Support for 12th, 13th, and 14th Gen Intel CPUs with overclocking potential thanks to its Z790 design.

• High-Speed Memory Support: 2 DDR5 slots (up to 64 GB total), with overclocking speeds up to ~8000+ MT/s (OC) and XMP 3.0 compatibility.

• Storage and Expansion:

  • 3× M.2 slots (two PCIe 4.0 and one PCIe 3.0/SATA)

  • 4× SATA III ports with RAID support

  • 1× PCIe 5.0 x16 slot for a high-performance GPU

• Robust Connectivity:

  • Rear I/O includes USB 3.2 Gen 2×2 Type‑C (20 Gb/s), USB 3.2 Gen 2 and Gen 1 Type‑A ports

  • Display outputs: HDMI 2.1 and DisplayPort 1.4

• Networking:

  • Tri-band Wi‑Fi 6E (up to 2.4 Gbps) plus Bluetooth 5.2 (or 5.3)

  • Wired 2.5 Gb Gigabit Ethernet

• Superior Audio: Features the Realtek ALC4080 codec with MSI Audio Boost

• Power & Cooling:

  • 10+1+1 phase VRM with 105A Smart Power Stages

  • Efficient thermal design with Frozr heatsink, heat-pipe, MOSFET thermal pads, and M.2 Shield Frozr

  • Board Build:

  • 12-layer server-grade PCB

  • Pre-installed I/O shield, EZ Debug LEDs, and friendly DIY layout
